8-Port Industrial Ethernet Connectivity

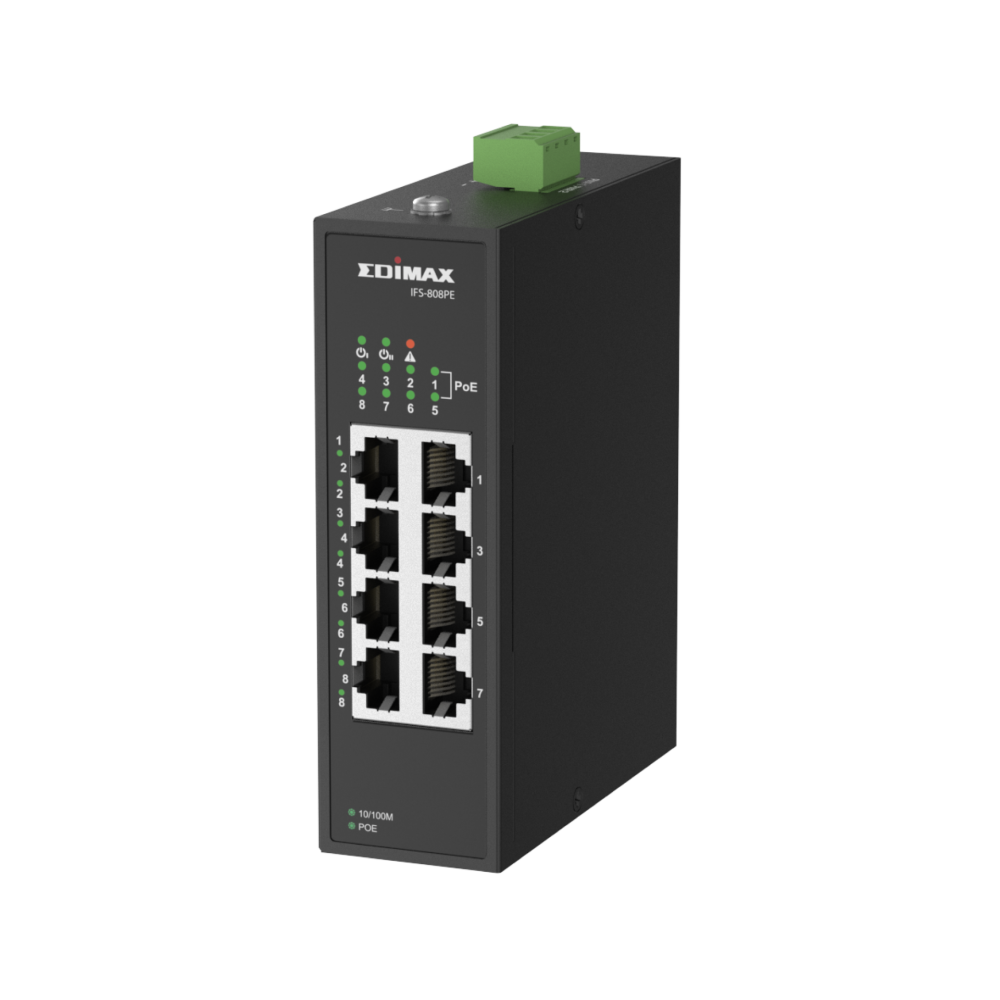

The IFS-808PE is an unmanaged industrial PoE switch featuring eight 10/100Mbps Fast Ethernet ports. With Auto-Negotiation and Auto MDI/MDIX, it provides straightforward plug-and-play connectivity for industrial Ethernet equipment without complicated network configuration.


8-Port PoE with 240W Power Budget

All eight Ethernet ports support IEEE 802.3af/at PoE, enabling network data and power to be delivered over the same Ethernet cable. A generous 240W total PoE power budget makes the switch suitable for connecting multiple PoE devices such as IP cameras, wireless access points, and other industrial network equipment.


Redundant Industrial DC Power

The IFS-808PE supports redundant 48–57V DC power inputs through a removable 4-pin terminal block. Separate PWR1 and PWR2 connections provide dual power inputs, while power and alarm LEDs indicate operating and abnormal power conditions for easier system monitoring.


Built for Harsh Industrial Environments

Designed for demanding industrial installations, the IFS-808PE operates from -40°C to 75°C and supports 10–95% non-condensing humidity. Its durable IP50-rated metal housing helps make it suitable for factory automation, industrial control cabinets, warehouses, and other challenging environments.


Enhanced Network and Surge Protection

The IFS-808PE provides 6kV surge protection on all RJ45 ports, helping protect connected network equipment against electrical disturbances. It also supports IEEE 802.3x flow control, half/full-duplex operation, pause frames, backpressure, VLAN passthrough, and up to 1552-byte jumbo frames.


Flexible Installation with High Reliability

The compact metal enclosure supports both DIN-rail and wall mounting, providing installation flexibility for industrial cabinets and equipment spaces. With an MTBF greater than 1,000,000 hours at 25°C, the IFS-808PE is specified for reliable, long-term industrial network operation.


SPECIFICATIONS

HARDWARE
Port	8 x RJ-45 10/100Base-T PoE+ Ports
Connector	Removable 4-pin Terminal Block (PWR1, PWR2, ALARM) Grounding Point with Screw
LED Indicators	Per Unit: PWR1, PWR2, ALARM Per Port: Link/Act, PoE
Power Input	48–57VDC
Mounting	DIN-rail Mount / Wall Mount
Housing	Metal, IP50-rated
Fan	Fanless
Dimensions	127(H) x 101(D) x 39(W) mm
Weight	487g
PERFORMANCE
MAC Address Table	1K
Jumbo Frame	1552 bytes
Packet Buffer	448kbits
Advanced Feature	Auto Negotiation Auto MDI/MDIX Flow Control
POWER OVER ETHERNET
Standard	IEEE 802.3af, IEEE 802.3at
Power Output	Up to 30W per Port
Total PoE Power Budget	240W
Pin Assignment	1/2(+), 3/6(-)
OTHERS
Protection	6kV Surge Protection on RJ45 Ports
MTBF	>1,000,000 hours @25°C (Mean Time Between Failure)
Standard	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet (PoE+) IEEE 802.3x Full-Duplex and Flow Control IEEE 802.3az Disabled Energy-Efficient Ethernet
Environmental Condition	Temperature: Operating: -40~75°C Storage: -40~85°C Humidity: Operating: 10~95% (NonCondensing) Storage: 10~95% (NonCondensing)
Certification	CE, UKCA
